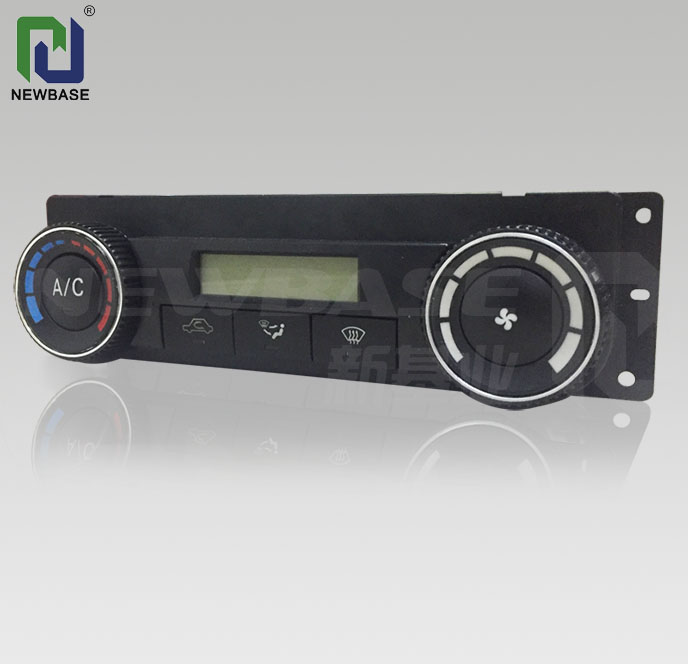

PEUGEOT 206 HVAC Control Module Heater Panel For AC Unit DC12V

Name: PEUGEOT 206 HVAC Control Module Heater Panel For AC Unit DC12V
Brand: Newbase
Price: 50 USD

China PEUGEOT 206 HVAC Control Module Heater Panel For AC Unit DC12V wholesale

Place of Origin : China

Brand Name : Newbase

Model Number : CK201370212, CK201370212

Packaging Details : Carton

MOQ : 50

Price : USD 50~100/unit

Model : 206 Hatchback (2A/C)

Year : 1998-

OE NO. : NA

Car Fitment : PEUGEOT

Reference NO. : 142715, 36.5015

Type : Air Condition Switch

Warranty : 18 Months

Car Make : Business Purpose Vehicle, Universal

Size : 225X62X61mm

Power supply : DC12V/24V

Power : 40w

Protection : IP43

EMC : EN50081&EN50082-2

Application : Car Air Conditioner System

Material : ABS

Port : qingdao shanghai

Delivery Time : 30 days

Payment Terms : T/T

Supply Ability : 3000EU/M

Contact Now

PEUGEOT 206 Hatchback 2A/C CK201370212 HVAC Climate Control Module Heater A/C AC Air Conditioning Control Switch Panel Two Knob Climate Control Systems

Product Description

Main function

Cooling	YES
Heating	YES
Ventilation	YES
Fresh Air	YES
Auto control	NO
Air flow regulation	YES
Air blowing setting	YES

Technical Data
Power supply	DC12V
Dimension	225X62X61mm
Input	1) Air inlet temp. sensor 2) Defrosting sensor 3) Pressure switch 4) ACC power 5) Backlight power supply 6) A/C power
Output	1) Cooling 2) Fresh air 3) Precharge 4) Evaporator fan PWM 5) Condenser fan 6) Heating 7) Mode actuator control
Ambient temperature	-40℃—85℃ 5%-95%RH Non-condensing
Storage temperature	-40℃—90℃ 5%-95%RH Non-condensing
Display precision	Temp value. Dual digit display, Accuracy,1 °c
Protection	IP43
EMC	EN50081&EN50082-2
Security level	Applied to EN61010-II, Pollution degree: II

PEUGEOT 206 HVAC Control Module Heater Panel For AC Unit DC12V

PEUGEOT HVAC Control Module

12V HVAC Control Module

12V control panel for ac unit

PEUGEOT 206 HVAC Control Module Heater Panel For AC Unit DC12V Images
