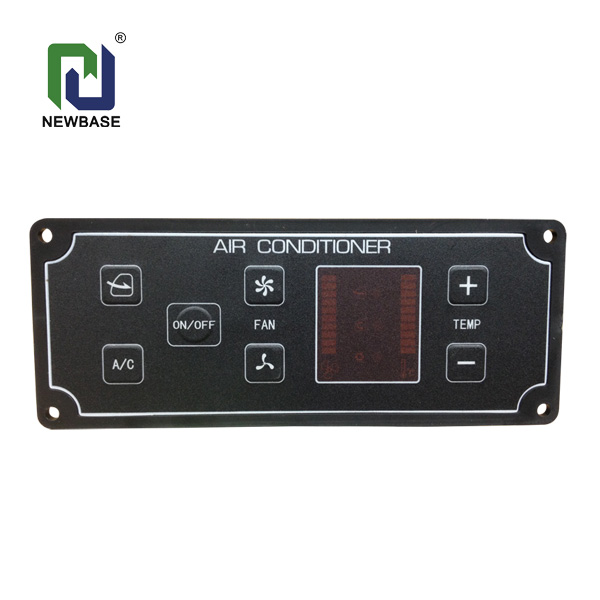

IP54 Van Rear HVAC Control Module Bus Climate Controller 24V 12V 4W

Name: IP54 Van Rear HVAC Control Module Bus Climate Controller 24V 12V 4W
Brand: Newbase
Price: 50 USD

China IP54 Van Rear HVAC Control Module Bus Climate Controller 24V 12V 4W wholesale

Place of Origin : China

Brand Name : Newbase

Certification : IATF16949

Packaging Details : Carton

Supply Ability : 3000EU/M

MOQ : 50

Price : USD 50~100/unit

Purpose : for replace/repair

Condition : New

Model : 1-series

Year : 1982-1998

Engine : 1100 TX

OE NO. : Requirements

Car Fitment : AGRALE

Reference NO. : NA

Size : 210X48X110mm

Type : a/c control panel

Warranty : 18M

Car Model : construction machinery

Power supply : 24V/12V

Delivery Time : 30 days

Payment Terms : T/T

Contact Now

A/C Control Panel for CG20113511 Truck Controller Panel Bus Climate Controller Designed and Manufactured by Newbase

applies to internal climate control of construction vehicle, truck, Van, Cabin, etc.

1. Main functions:

Fresh air
Cooling
Warming
Power-down memory
Error alarm
Demist
Air flow angle

The shift function:

Air conditioner defrost temp. check (press fresh air button for 3s)

2. Detailed Product Description:

Power supply	DC12V/24V
Power consumption	4W
Current	Max.200mA
Dimensions	210X48X110mm
Input	1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) ACC(battery) 5) Backlight power
Output	1) Fan speed PWM 2) Demist 3) Compressor clutch 4)Heating 5)Back-blowing 6)Feet-blowing 7)Front-blowing 8)Fresh air
Display	LED
Ambient temperature	-30℃—80℃ 5%-95%RH Non-condensing
Storage temperature	-10℃—70℃ 5%-95%RH Non-condensing
Display precision	Temp value. Dual digit display, Accuracy,1 °c
Protection	IP54
EMC	EN50081&EN50082-2
Security level	Applied to EN61010-II, Pollution degree: II
Weight	390g

3.Application:

LIUGONG MACHINERY,XGM MACHINERY

4.Partners:

IP54 Van Rear HVAC Control Module Bus Climate Controller 24V 12V 4W
